PICARD'S METHOD:Explanation,algorithm and flowchart




 PICARD'S Method

The Picard’s method is an iterative method and is primarily used for approximating solutions to differential equations.

This method of solving a differential equation approximately is one of successive approximation; that is, it is an iterative method in which the numerical results become more and more accurate, the more times it is used.

The Picard’s iterative method gives a sequence of approximations Y1(x), Y2(x), …Yk(x) to the solution of differential equations such that the nth approximation is obtained from one or more previous approximations.

The Picard’s iterative series is relatively easy to implement and the solutions obtained through this numerical analysis are generally power series.


ALGORITHM:

  • Step 1: An approximate value of y (taken, at first, to be a constant) is substituted into the right hand side of the differential equation:
    dy/dx= f(x, y).
  • Step 2: The equation is then integrated with respect to x giving y in terms of x as a second approximation, into which given numerical values are substituted and the result rounded off to an assigned number of decimal places or significant figures.
  • Step 3: The iterative process is continued until two consecutive numerical solutions are the same when rounded off to the required number of decimal places.


PROGRAM
#include <math.h>
#include <stdio.h>

// required macros defined below:
#define Y1(x) (1 + (x) + pow(x, 2) / 2)
#define Y2(x) (1 + (x) + pow(x, 2) / 2 + pow(x, 3) / 3 + pow(x, 4) / 8)
#define Y3(x) (1 + (x) + pow(x, 2) / 2 + pow(x, 3) / 3 + pow(x, 4) / 8 + pow(x, 5) / 15 + pow(x, 6) / 48)

int main()
{
    double start_value = 0, end_value = 3,
           allowed_error = 0.4, temp;
    double y1[30], y2[30], y3[30];
    int count;

    for (temp = start_value, count = 0;
         temp <= end_value;
         temp = temp + allowed_error, count++) {

        y1[count] = Y1(temp);
        y2[count] = Y2(temp);
        y3[count] = Y3(temp);
    }

    printf("\nX\n");
    for (temp = start_value;
         temp <= end_value;
         temp = temp + allowed_error) {

        // considering all values
        // upto 4 decimal places.
        printf("%.4lf ", temp);
    }

    printf("\n\nY(1)\n");
    for (temp = start_value, count = 0;
         temp <= end_value;
         temp = temp + allowed_error, count++) {

        printf("%.4lf ", y1[count]);
    }

    printf("\n\nY(2)\n");
    for (temp = start_value, count = 0;
         temp <= end_value;
         temp = temp + allowed_error, count++) {

        printf("%.4lf ", y2[count]);
    }

    printf("\n\nY(3)\n");
    for (temp = start_value, count = 0;
         temp <= end_value;
         temp = temp + allowed_error, count++) {

        printf("%.4lf ", y3[count]);
    }
    return 0;
}



Comments


Comments

Post a Comment

Popular posts from this blog

Newton Raphson Method:Explanation, algorithm and flowchart

 Newton raphson method: Newton-Raphson method, also known as the Newton’s Method, is the simplest and fastest approach to find the root of a function. It is an open bracket method and requires only one initial guess. The   C program for Newton Raphson method   presented here is a programming approach which can be used to find the real roots of not only a nonlinear function, but also those of algebraic and   transcendental equation s. Newton’s method is often used to improve the result or value of the root obtained from other methods. This method is more useful when the first derivative of f(x) is a large value. The programming effort for  Newton Raphson Method in C  language is relatively simple and fast. The convergence is the fastest of all the root finding methods discussed in  Numerical Methods Tutorial  section – the  bisection method , the  secant method  and the  regula-falsi method . Features of Newton Raphson Method: T...
Read more

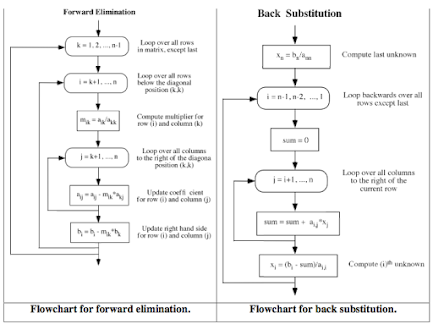

GAUSS ELIMINATION METHOD:EXPLANATION,ALGORITHM AND FLOWCHART
